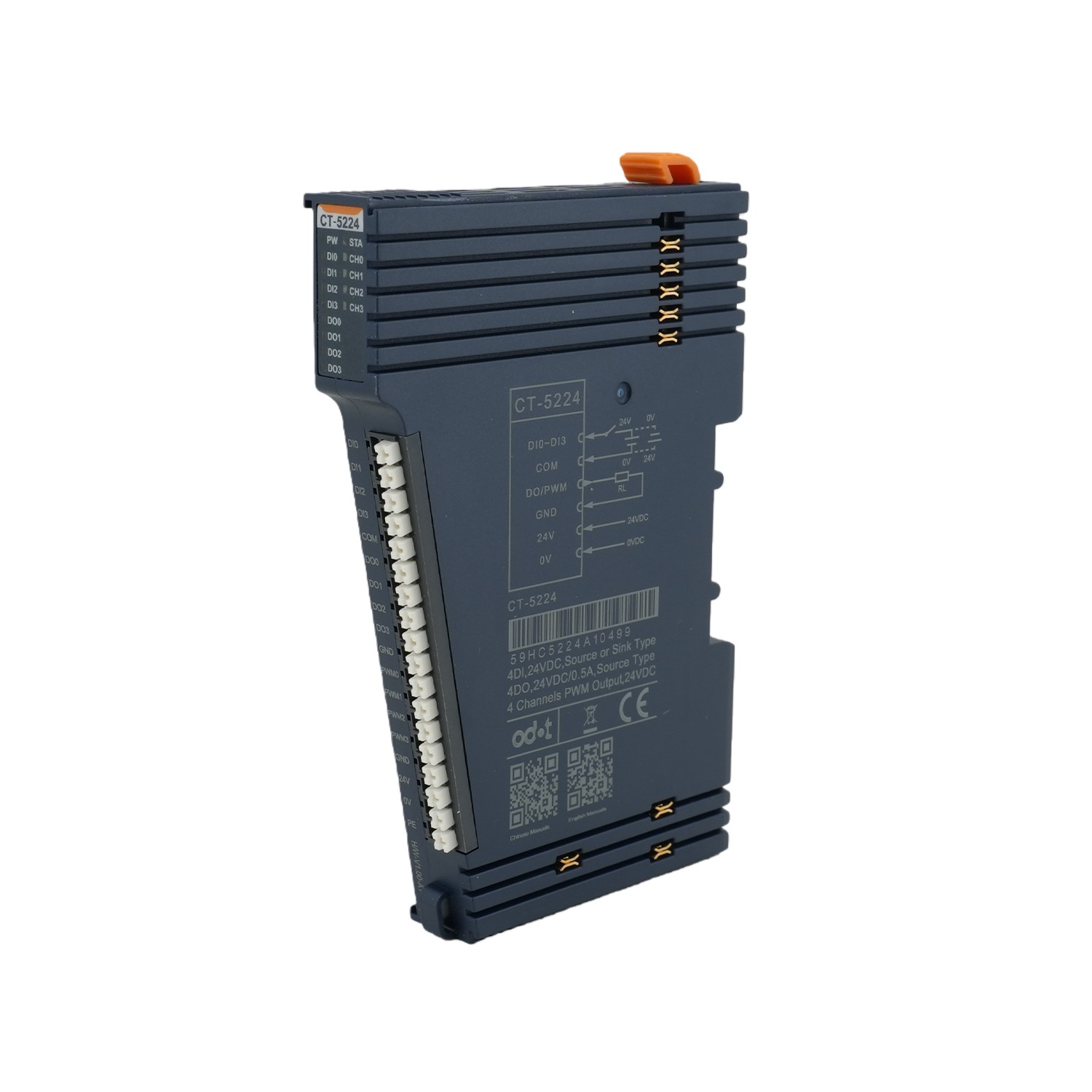

Model No.: CT-5224
The file is encrypted. Please fill in the following information to continue accessing it
| General Parameters | |
| Power | System: Max.115mA @ 5.0VDC |
| Isolation | The isolation voltage between field power and system power supply: AC 500V The isolation voltage between I/O channel and system power supply: AC 500V The isolation voltage between I/O channel and PE: AC 500V The isolation voltage between digital input and output channels: AC 500V |
| Filed Power | Protection: reverse protection Supply: 19.2～28.8V (nominal: 24VDC） |
| Wiring | Max.: AWG 18 Min.: AWG 24 |
| Mounting Type | 35mm DIN-Rail |
| Size | 115*14*75mm |
| Weight | 75g |
| Environment Specification | |
| Operating Temperature of Vertical Installation | -35℃~60℃ |
| Operating Temperature of Horizontal Installation | -35℃~70℃ |
| Relative Humidity | 5~ 95%RH (No Condensation) |
| Storage Temperature | -40℃~85℃ |
| Storage Humidity | 5~ 95%RH (No Condensation) |
| Manufacturing Test Temperature | -40℃~75℃ |
| Ingress Protection Rating | IP20 |
| Vibration Resistance | Comply with IEC 61131-2 and EC 60068-2-6 |
| Impact resistance | Comply with IEC 61131-2 and IEC 60068-2-27 |
| EMC Performance | Comply with IEC 61131-2 and IEC 61000-4 |
| DI Parameters | |
| Channel Number | 4-channel input |
| Indicator | 4-channel input indicator |
| Input Type | IEC61131-2 Type3 |
| Turn-on Voltage | Source: 11~30VDC（compared with COM terminal） Sink：-30~-11VDC（compared with COM terminal） |
| Turn-off Voltage | Source: -30~5VDC (compared with COM terminal) Sink：-5~30VDC（compared with COM terminal） |
| Turn-on Current | 2.1mA@DC 11V（IEC61131，type3） |
| Input Impedance | >5KΩ@DC 24V |
| Input Delay | OFF to ON: <1ms ON to OFF: <1ms |
| Filter Time | Default: 10ms |
| Sample Frequency | 500Hz |
| DO Parameters | |
| Channel Number | 4-channel output |
| Indicator | 4-channel output indicator |
| Rated Current | Max. 0.5A@DC 24V |
| Leakage Current | <5μA |
| Output Impedance | Typical value: <230mΩ |
| Output Delay | OFF to ON: <5μs ON to OFF: <10μs |
| Output Type | Source / High-side output |
| Protection Function | Short circuit protection support Overcurrent protection: 3A Over-temperature protection: thermal protection temperature of the channel: 167℃ Chip thermal protection temperature: 150℃ |
| PWM Parameters | |
| Channel Number | 4-channel output |
| Rated Current | Max. 1A@DC 24V |
| Leakage Current | <5μA |
| On-resistance | Typical value: 230mΩ |
| Output Delay | OFF to ON: <1μs ON to OFF: <1μs |
| Pulse Duration Accuracy | ±0.5μs |
| Pulse Duration Resolution | 50ns |
| Minimum Pulse Duration | 1us |
| Maximum Switching Frequency | 60KHz |
| Pulse Rise Time | <200ns |
| Pulse Decay Time | <100ns |
| Protection Function | Short circuit protection support Overcurrent protection: 3A Over-temperature protection：thermal protection temperature of the channel: 167℃ Chip thermal protection temperature: 150℃ |
