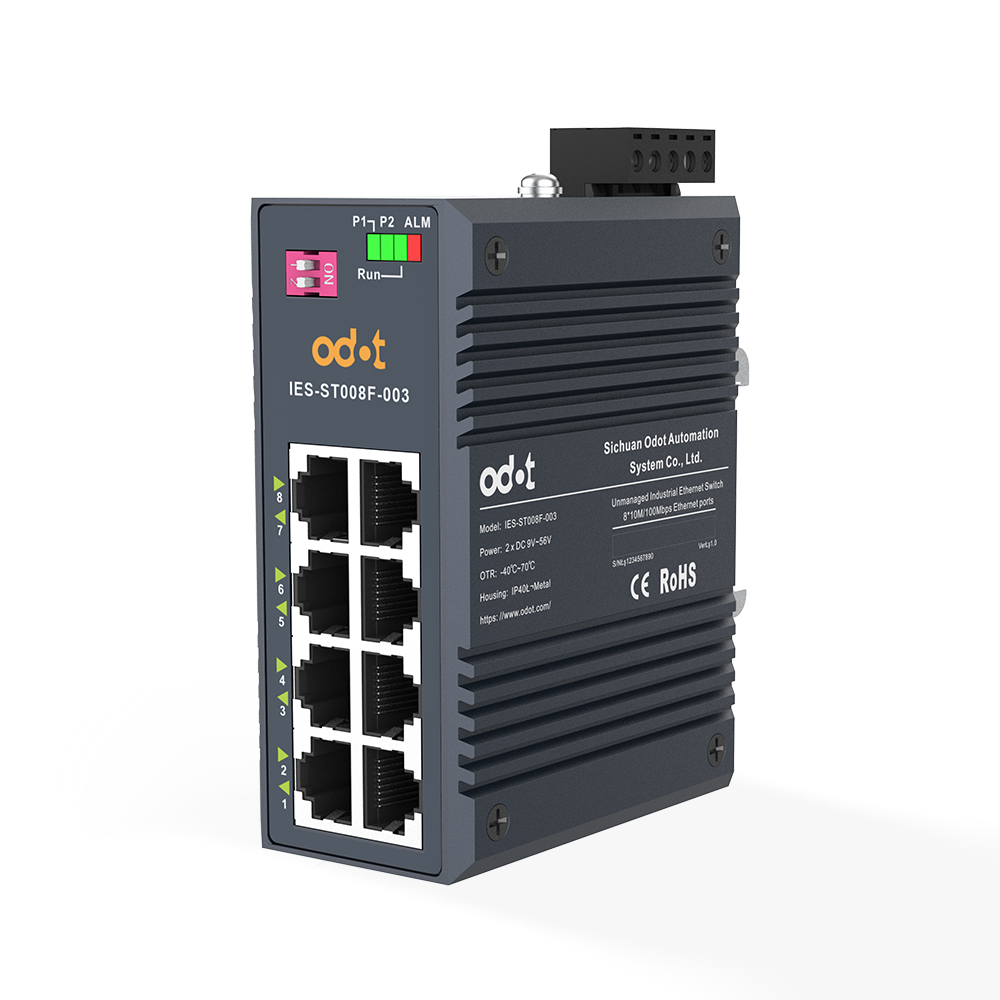

Model No.: IES-ST008F-003
| Download | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
◆ Supports up to 8 x 10/100 Mbps ports；
◆ The cache reaches 1 Mbit, which can meet the smooth transmission of 4K
video;
◆ Support IEEE 802.3/802.3u/802.3x storage forwarding modes;
◆ It supports large backplane bandwidth and large switching cache to ensure
line-speed forwarding of all ports;
◆ Redundant dual DC power supply (9 V ~56 V) with anti-reverse connection
protection function;
◆ -40 ℃～70 ℃ wide temperature design to ensure that the equipment can adapt
to various harsh field environments;
◆ IP40 level protection, high-strength metal housing, fanless, low-power design;
◆ Adopt shock-resistant rail/wall mounting, plug and play, can be installed in a
compact equipment box;
| Interface Parameter | |
| Hundred Meg Electrical Port | 8 RJ45 ports, 10/100 Mbps adaptive |
| Power Interface | 5-pin 5.08 mm pitch terminal block |
| Switch Properties | |
| Protocol Standard | IEEE 802.3 IEEE 802.3u IEEE 802.3x |
| Cache Size | 1M |
| Forward Frame Length | 2048 Bytes |
| MAC Address Table | 2K |
| Forwarding Method | Store-and-forward (full-duplex/half-duplex) |
| Delay | < 7μs |
| Backplane Bandwidth | 1.6 Gbps |
| Package Forwarding Rate | 1.19 Mpps |
| Indicator | |
| Power Indicator | PWR |
| Port State Indicator | Electric port LNK& ACT (1~8) |
| Power Specifications | |
| Operating Voltage | 9 V~56V DC |
| Power Consumption | < 3W |
| Mechanical Structure | |
| Protection Level | IP40 |
| Installation | DIN rail/wall mounted |
| Size | 101 mm×80 mm×43 mm (L×W×H) |
| Weight | About 400g |
| Environmental Parameter | |
| Operating Temperature | -40 ℃~70 ℃ |
| Storage Temperature | -40 ℃~85 ℃ |
| Relative Humidity | 5%RH~95%RH (No condensation) |
| MTBF | 300,000 hours |
| EMC Performance | |
|
Anti-Static Discharge (ESD) | Contact discharge:±6 kV, performance class B; Air discharge:±15 kV, performance class A; Executive standard: IEC 61000-4-2 |
| Anti-Radio Frequency Interference (RS) | Executive standard: IEC 61000-4-3 |
| Anti-Fast Transient Pulse Swarm (EFT) | Power port 2.5 kV, performance class A; Signal port 2.5 kV, performance class A; Executive standard: IEC 61000-4-4 |
|
Surge | Common mode: 0.5 kV, performance class A; 1 kV, performance class B; 2 kV, performance class A; Differential mode: 0.5 kV, performance class A; 1 kV, performance class A； Executive standard: IEC 61000-4-5 |
| Conducted Interference Resistance (CS) | Executive standard: IEC 61000-4-6 |
