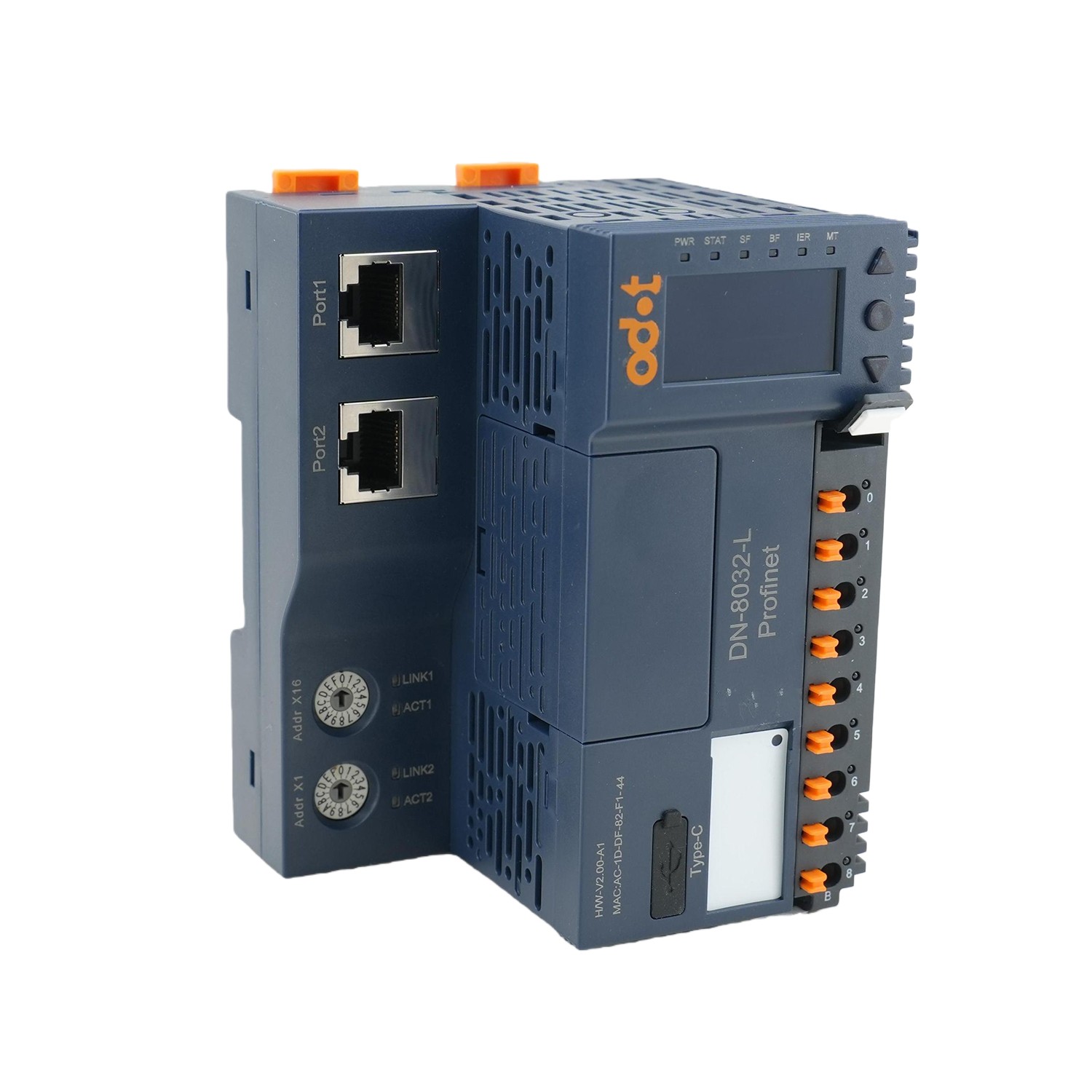

Network Adapter for PROFINET

Module Features

The DN8032-L network adapter supports standard PROFINET IO Device protocol, and it supports dual network port switch cascade function;

The module supports up to 32 IO modules expansion, the maximum input of process data is 1440 bytes (Each submodule is 1 byte and is associated with the state of the input data).

The module not supports the MRP media redundancy and the redundant ring network, it supports RT real-time communication mode, RT real-time communication minimum period is 1ms;

Module high speed redundant backplane bus, and the refresh cycle of full load is 0.6ms;

Module two-stage installation is more convenient, staggered layout spring light guide terminals, and the terminal is pluggable, it is easy to maintenance and replacement, the wiring diameter is 0.2mm² (AWG 24) ~ 1.5mm² (AWG 16);

The OLED screen can view the module related parameters, it can acquire some important information without the software.

Technical Parameters

General Parameter
Current Consumption	107mA@24VDC
System Power	19.2~28.8VDC (Nominal: 24VDC) Anti-inversion protection: support
Internal Bus Supply Current	Max.2A@5VDC
Field Power	19.2~28.8VDC（Nominal: 24VDC）
Field Power Current	Max. DC 8A
Wirring Diameter	Min.0.2mm²(AWG24) Max.1.5mm²(AWG16)
Terminal Pluggable	Support
The Maximum Number of Expansion Modules	32
Diagnosis Function	Communication diagnostics, extended module status diagnostics
Backplane Bus	Double bus redundancy
Installation	35mm DIN-Rail
Dimension	1198380mm
Product Certification	CE Certification
Communication Parameters
Protocol	PROFINET IO Device
Input	1440 bytes
Output	1440 bytes
Transmission Speed	10/100 Mbit/s
RT	Support, RT real-time communication minimum period is 1ms
IRT	Not support
MRP	Not support
MRPD	Not support
Device Name Setting	DIP switch or software configuration
Environment Parameters
Horizontal Installation Operating Temperature	-35℃~60℃
Vertical Installation Operating Temperature	-35℃~50℃
Storage Temperature	-40℃~85℃
Environment Humidity	5%~95%RH (No condensation)
Installation Altitude	<2000m
Pollution Degree	Ⅱ
Protection Grade	IP20
Mechanical Properties	Comply with IEC60068-2-6, IEC6008-2-27
Insulation Withstand	Comply with IEC61131-2
EMC Performance	Comply with IEC61131-2, IEC61000-4 (ESD: Contact discharge±6kV, Air discharge±8kV, Performance level A; SURGE: Common mode ±2kV, Differential mode±1kV, Performance level A; EFT: ±2kV, Performance level A)

Application scenarios:

FQA

Q： What PROFINET features does the DN-8032-L support, and how many I/O modules can it connect?

A：The DN-8032-L supports the standard PROFINET IO Device protocol with dual Ethernet ports enabling switch cascade functionality. It can expand up to 32 I/O modules, supporting a maximum of 1440 bytes of input data and 1440 bytes of output data (1 byte per submodule).

Q：Does the DN-8032-L support real-time communication and redundancy protocols like MRP?

A：The module supports PROFINET RT (Real-Time) communication with a minimum cycle time of 1 ms, ensuring fast and deterministic data exchange. However, it does not support MRP (Media Redundancy Protocol) or redundant ring networks.

Q：What design and diagnostic features make the DN-8032-L easy to install and maintain?

A：The DN-8032-L features a two-stage installation structure, staggered spring-type pluggable terminals (compatible with 0.2–1.5 mm² / AWG 24–16 wiring), and full isolation between internal bus, system power, and field power to prevent interference. It also includes LED indicators for operation and communication status, plus an OLED screen for on-device viewing of key parameters—eliminating the need for software during basic diagnostics.

Certifications & Quality Assurance:

ODOT Products comply with international industrial standards, including CE and RoHS, and undergo strict quality control to ensure long-term reliable operation in industrial environments.
