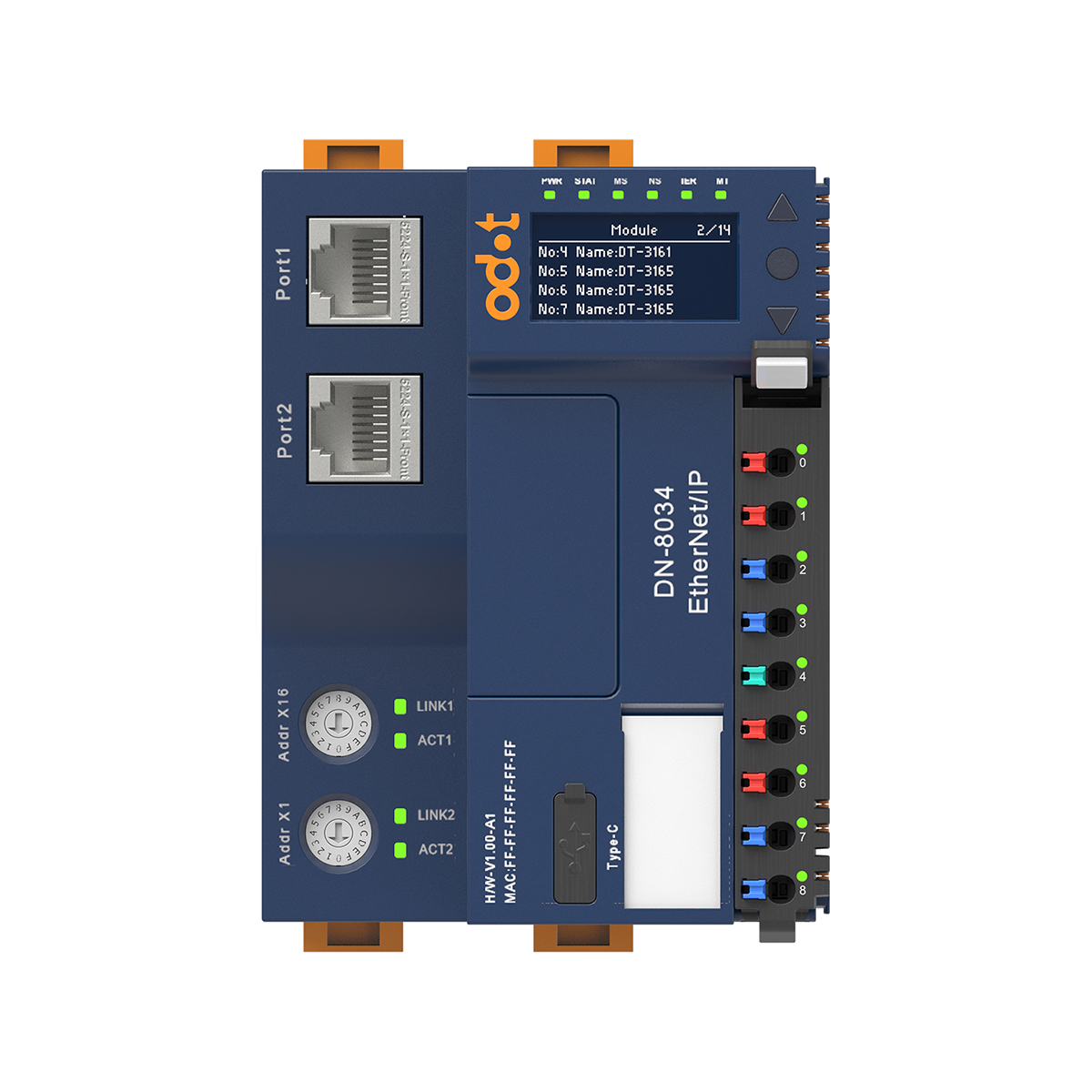

DN-8034 EtherNet/IP Network Adapter

Module Features

1、DN-8034 Network adapter supports standard EtherNet/IP protocol, and it supports dual network port switch cascade function.

2、The module supports up to 32 IO modules extension, the maximum input of process data is 1024 bytes and the maximum output is 1024 bytes, flexible selection of IO modules to be paired with adapter;

3、Module high speed redundant backplane bus, and the refresh cycle of full load is 0.6ms;

4、Module removable installation is more convenient, staggered layout spring light guide terminals, and the terminal is pluggable, it is easy to maintenance and replacement, the wiring diameter is 0.2mm² (AWG 24) ~ 1.5mm² (AWG 16);

5、The internal bus and system power and field power are completely isolated, avoid field equipment signals interfering with module internal communications;

6、The module supports communication diagnostics, extended module diagnostic function, with indicator lights such as operating status and communication status;

7、The OLED screen can view the module related parameters, it can acquire some important information without the software;

Technical Parameters

General Parameter
Current Consumption	104mA@24VDC
System Power	19.2~28.8VDC (Nominal: 24VDC) Anti-inversion protection: support
Internal Bus Supply Current	Max.2A@5VDC
Field Power	19.2~28.8VDC (Nominal: 24VDC)
Field Power Current	Max. DC 8A
Wirring Diameter	Min.0.2mm²(AWG24) Max.1.5mm²(AWG16)
Terminal Pluggable	Support
The Maximum Number of Expansion Modules	32
Diagnosis Function	Communication diagnostics, extended module status diagnostics
Backplane Bus	Double bus redundancy
Installation	35mm DIN-Rail
Dimension	1198380mm
Product Certification	CE Certification
Communication Parameters
Protocol	EtherNet/IP slave
Interface	2*RJ45, integrated switch capabilities
Line Length	Maximum 100m (segment length) between 2 sites
Transmission Speed	10/100 Mbps, full-duplex
Maximum Number of Input/Output Bytes	Input: 1024 Bytes Output: 1024 Bytes
IP Address Setting	Dial switch or IO Config software
Default IP Address	192.168.200
Environment parameters
Horizontal Installation Operating Temperature	-35℃~60℃
Vertical Installation Operating Temperature	-35℃~50℃
Storage Temperature	-40℃~85℃
Environment Humidity	5%~95%RH (No condensation)
Installation Altitude	<2000m
Pollution Degree	Ⅱ
Protection Grade	IP20
Mechanical Properties	Comply with IEC60068-2-6, IEC6008-2-27
Insulation Withstand	Comply with IEC61131-2
EMC Performance	Comply with IEC61131-2, IEC61000-4 (ESD: Contact discharge±6kV, Air discharge±8kV, Performance level A; SURGE: Common mode ±2kV, Differential mode±1kV, Performance level A; EFT: ±2kV, Performance level A)
